SIMATIC IPC377G
Overview
SIMATIC IPC377G

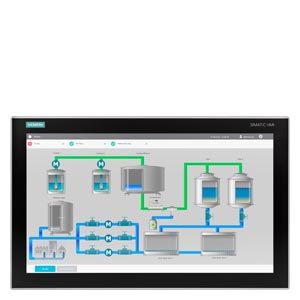

Based on Intel Atom processor technology, the SIMATIC IPC377G Panel PC represents a new IPC platform which has been specifically developed for cost-optimized, PC-based applications in industrial and industry-oriented environments.
The SIMATIC IPC377G Panel PC is characterized by a large number of interfaces.
Fast availability ex stock as well as the fanless industrial design complete the concept.
Benefits
Future-proof thanks to the latest PC technology
- Intel Atom X6413E (4-core) with maximum performance
- DDR4 memory technology up to 16 GB RAM
- 2x M.2 for flexible expansions
- Windows 10 IoT Enterprise 2019 LTSC
Easy connection using a variety of interfaces
- 2x RS232/RS485/RS422 + 2x RS232 (optional)
- 7x USB - 4x USB 3.1, 1x USB 2.0 type A (internal), 2x USB 2.0 pin connector
- 2 x Gbit LAN
- 2 x DisplayPort
Proven reliability due to "Made for Industry" & SIMATIC quality
- Fanless, closed industry design (IP40) (not applicable for 22" design)
- Run-in tested for fast and trouble-free commissioning
- Suitable for an ambient temperature up to 50 °C (in operation)
- Up to 1 g vibration / 15 g shock during operation
- Certificates for worldwide use
- Flexible mounting (cabinet, VESA)
Economic solutions and fast availability
- Ideal platform for cost-optimized PC and HMI applications in the industrial environment
- Attractive packages with SIMATIC HMI software
- Many configurations available directly ex stock
Application
The IPC377G is versatile and can be used, for example, in the pharmaceutical industry, in factory automation, logistics or also for intelligent industrial operator stations.
Areas that can be covered by the applications include the following:
- HMI applications
- Easy image processing
- Simple control tasks
- Intelligent industrial operator stations
- Cost-optimized operator stations
- Remote data monitoring
Design
Basic design
- All-metal enclosure with degree of protection IP40
- Integrated 24 V DC power supply
- Processor:
Intel Atom x6413E, 1.5 GHz – burst frequency 3.0 GHz, Quad Core - Interfaces:
- 2 x Gbit Ethernet (RJ45)
- 4 x USB 3.1 (up to 10 Gbps); 3 x USB 2.0
- 4 x COM, of which 2 x in BIOS selectable between RS232 / RS485 / RS422
- Audio in/out
- Video interfaces:
- 2 x DisplayPort
- Expansion options
- 2x M.2 modules
Equipment variants
- Main memory configuration
- 4 GB, 8 GB, or 16 GB RAM
- Mass storage
- Without mass storage
- 256 GB SSD
- 512 GB SSD
- Preinstalled operating systems:
- Without operating system
- Windows 10 Enterprise 2019 LTSC, 64-bit, MUI
Technical specifications
|
Article number |
6AV7231-0....-...0 |
|
|---|---|---|
|
|
SIMATIC IPC377G |
|
|
General information |
|
|
|
Product type designation |
IPC377G |
|
|
Installation type/mounting |
|
|
|
Mounting |
Panel mount and VESA, horizontal and vertical |
|
|
Design |
Panel PC, built-in unit |
|
|
Supply voltage |
|
|
|
Type of supply voltage |
24 V DC |
|
|
Mains buffering |
|
|
|
10 ms |
|
|
Processor |
|
|
|
Processor type |
Intel Atom X6413E |
|
|
Memory |
|
|
|
Type of memory |
DDR4 |
|
|
Main memory |
4 GB, 8 GB,16 GB |
|
|
Capacity of main memory, max. |
16 Gbyte |
|
|
Hardware configuration |
|
|
|
Slots |
|
|
|
2x M.2 |
|
|
Interfaces |
|
|
|
Number of industrial Ethernet interfaces |
2; 2x RJ45 (independent) |
|
|
Video interfaces |
|
|
|
2x DisplayPort |
|
|
Industrial Ethernet |
|
|
|
2x Ethernet (RJ45) |
|
|
Yes |
|
|
Yes |
|
|
Protocols |
|
|
|
Protocols (Ethernet) |
|
|
|
Yes |
|
|
Integrated Functions |
|
|
|
Monitoring functions |
|
|
|
Yes |
|
|
Yes |
|
|
POWER, HDD |
|
|
No |
|
|
EMC |
|
|
|
Interference immunity against discharge of static electricity |
|
|
|
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
|
Interference immunity against high-frequency electromagnetic fields |
|
|
|
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
|
|
Degree and class of protection |
|
|
|
IP (at the front) |
IP65 |
|
|
IP (rear) |
IP40 |
|
|
Standards, approvals, certificates |
|
|
|
CE mark |
Yes |
|
|
CSA approval |
Yes |
|
|
UL approval |
Yes |
|
|
RCM (formerly C-TICK) |
Yes |
|
|
KC approval |
Yes |
|
|
EAC (formerly Gost-R) |
Yes |
|
|
FCC |
Yes |
|
|
BSMI |
Yes |
|
|
Dust protection |
Protection against foreign bodies > 1 mm |
|
|
Ambient conditions |
|
|
|
Ambient temperature during operation |
|
|
|
0 °C to 50 °C |
|
|
Ambient temperature during storage/transportation |
|
|
|
-20 °C |
|
|
70 °C |
|
|
Relative humidity |
|
|
|
max. 85% at 30 °C, no condensation, gradient <= 10 °C/h |
|
|
85 % |
|
|
Vibrations |
|
|
|
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
|
|
Shock testing |
|
|
|
tested according to IEC 60068-2-27: 150 m/s², 11 ms; 5 g, 30 ms |
|
|
Operating systems |
|
|
|
without operating system |
Yes |
|
|
pre-installed operating system |
|
|
|
Yes |
|
|
Dimensions |
|
|
|
Width |
652 mm |
|
|
Height |
443 mm |
|
|
Depth |
209 mm |
|
|
Article number |
6AV7231-0CC21-0AA0 |
6AV7231-0CC21-2BA0 |
6AV7231-0DC21-0AA0 |
6AV7231-0DC21-2BA0 |
6AV7231-0EC21-2BA0 |
6AV7231-0FC21-2BA0 |
6AV7231-0FC31-2BA0 |
|
|---|---|---|---|---|---|---|---|---|
|
|
SIMATIC IPC377G |
SIMATIC IPC377G |
SIMATIC IPC377G |
SIMATIC IPC377G |
SIMATIC IPC377G |
SIMATIC IPC377G |
SIMATIC IPC377G |
|
|
General information |
|
|
|
|
|
|
|
|
|
Product type designation |
|
|
IPC377G |
|
|
|
|
|
|
Installation type/mounting |
|
|
|
|
|
|
|
|
|
Mounting |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
Panel mount and VESA, horizontal and vertical |
|
|
Design |
Panel PC, built-in unit |
Panel PC, built-in unit |
Panel PC, built-in unit |
Panel PC, built-in unit |
Panel PC, built-in unit |
Panel PC, built-in unit |
Panel PC, built-in unit |
|
|
Supply voltage |
|
|
|
|
|
|
|
|
|
Type of supply voltage |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
|
|
Mains buffering |
|
|
|
|
|
|
|
|
|
10 ms |
10 ms |
10 ms |
10 ms |
10 ms |
10 ms |
10 ms |
|
|
Processor |
|
|
|
|
|
|
|
|
|
Processor type |
|
|
Intel Atom X6413E |
|
|
|
|
|
|
Memory |
|
|
|
|
|
|
|
|
|
Type of memory |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
|
|
Main memory |
|
|
4 GB, 8 GB,16 GB |
|
|
|
|
|
|
Capacity of main memory, max. |
16 Gbyte |
16 Gbyte |
16 Gbyte |
16 Gbyte |
16 Gbyte |
16 Gbyte |
16 Gbyte |
|
|
Hardware configuration |
|
|
|
|
|
|
|
|
|
Slots |
|
|
|
|
|
|
|
|
|
2x M.2 |
2x M.2 |
2x M.2 |
2x M.2 |
2x M.2 |
2x M.2 |
2x M.2 |
|
|
Interfaces |
|
|
|
|
|
|
|
|
|
Number of industrial Ethernet interfaces |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
|
|
Video interfaces |
|
|
|
|
|
|
|
|
|
2x DisplayPort |
2x DisplayPort |
2x DisplayPort |
2x DisplayPort |
2x DisplayPort |
2x DisplayPort |
2x DisplayPort |
|
|
Industrial Ethernet |
|
|
|
|
|
|
|
|
|
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Protocols |
|
|
|
|
|
|
|
|
|
Protocols (Ethernet) |
|
|
|
|
|
|
|
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Integrated Functions |
|
|
|
|
|
|
|
|
|
Monitoring functions |
|
|
|
|
|
|
|
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
POWER, HDD |
POWER, HDD |
POWER, HDD |
POWER, HDD |
POWER, HDD |
POWER, HDD |
POWER, HDD |
|
|
No |
No |
No |
No |
No |
No |
No |
|
|
EMC |
|
|
|
|
|
|
|
|
|
Interference immunity against discharge of static electricity |
|
|
|
|
|
|
|
|
|
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
|
Interference immunity against high-frequency electromagnetic fields |
|
|
|
|
|
|
|
|
|
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
10 V/m for 80 ... 1 000 MHz, 80 % AM according to IEC 61000-4-3; 3 V/m for 1.4 ... 6 GHz, 80 % AM according to IEC 61000-4-3 |
|
|
Degree and class of protection |
|
|
|
|
|
|
|
|
|
IP (at the front) |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
|
IP (rear) |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
|
|
Standards, approvals, certificates |
|
|
|
|
|
|
|
|
|
CE mark |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
CSA approval |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
UL approval |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
RCM (formerly C-TICK) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
KC approval |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
EAC (formerly Gost-R) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
FCC |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
BSMI |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Dust protection |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
|
|
Ambient conditions |
|
|
|
|
|
|
|
|
|
Ambient temperature during operation |
|
|
|
|
|
|
|
|
|
0 °C to 50 °C |
0 °C to 50 °C |
0 °C to 50 °C |
0 °C to 50 °C |
0 °C to 50 °C |
0 °C to 50 °C |
0 °C to 50 °C |
|
|
Ambient temperature during storage/transportation |
|
|
|
|
|
|
|
|
|
-20 °C |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
|
|
70 °C |
70 °C |
70 °C |
70 °C |
70 °C |
70 °C |
70 °C |
|
|
Relative humidity |
|
|
|
|
|
|
|
|
|
85 % |
85 % |
85 % |
85 % |
85 % |
85 % |
85 % |
|
|
Vibrations |
|
|
|
|
|
|
|
|
|
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
Tested according to IEC 60068-2-6: 5 Hz to 8.4 Hz: 3.5 mm, 8.4 Hz to 500 Hz: 9.8 m/s² |
|
|
Shock testing |
|
|
|
|
|
|
|
|
|
|
|
tested according to IEC 60068-2-27: 150 m/s², 11 ms; 5 g, 30 ms |
|
|
|
|
|
|
Operating systems |
|
|
|
|
|
|
|
|
|
without operating system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
pre-installed operating system |
|
|
|
|
|
|
|
|
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
