SIMATIC HMI Panel PC Ex
Overview

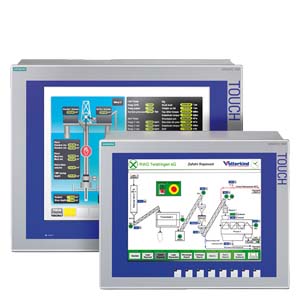

SIMATIC HMI Panel PC Ex with international approvals for operation and monitoring in hazardous areas.
Notice:
Effective immediately, the SIMATIC Panel PC Ex will be supplied with a Quad-Core Intel Atom Processor E3845, thus enabling it to offer around four times the performance of the current Intel Atom N270 systems.
A new ordering configurator with the Article No. 6AV7200-4....-.... has been created:
Additional information is available on the Internet at:
http://www.siemens.com/simatic-hmi-ex
And in the Industry Mall:
Application
The SIMATIC HMI Panel PC Ex is a Panel PC for use directly in hazardous areas. The device is both an ideal platform for (maintenance-free) embedded applications, as well as a flexible platform for applications under Windows XP Professional or Windows 7.
Integration
Configuration and integrated interfaces with SIMATIC HMI Panel PC Ex:
- Intel Atom E3845 with 1.91 GHz and 4 GB DDR2 SDRAM
- Mass storage 32 GB SSD, 128 GB SSD
- Ethernet: 10/100 Mbit Ex e, or fiber-optics 100 Mbit (SC) Ex op is
- Serial: 1 x RS232 or 1 x RS422/485
- USB 2.0: 2 x Ex i, 2 x Ex e (Zone 1) or 2 x Ex nA (Zone 2)
Technical specifications
|
SIMATIC HMI Panel PC Ex |
|
|---|---|
|
General features |
|
|
Design |
Panel PC built-in unit, protective enclosure available as an option |
|
Front |
15" and 19", optional 15" sunlight-readable displays |
|
Operation |
Touch with 8 function keys |
|
Processor |
Intel Atom E3845 with 1.91 GHz |
|
Main memory |
4 GB DDR2 SDRAM |
|
Operating system, |
Windows 7 MUI, Windows 7 Ultimate, WES7 E |
|
Mass storage |
32 GB SSD, 128 GB SSD |
|
Power supply |
24 V DC, max. 2.1 A (19") |
|
Interfaces |
|
|
Ethernet |
10/100 Mbit Ex e, or fiber-optics 100 Mbit (SC) Ex op is |
|
USB 2.0 |
2 x Ex i, 2 x Ex e (Zone 1) or 2 x Ex nA (Zone 2) |
|
Serial |
1 x RS232 or 1 x RS422/485 |
|
Ambient conditions |
|
|
Degree of protection |
IP66 at front, IP65 at rear, IP66 in protective enclosure |
|
Ambient temperature during operation |
- 20 °C ... + 50 °C (cold start -10 °C) |
|
Relative humidity during operation |
90 % at + 40 °C, no condensation |
|
Approvals/directives |
|
|
Devices in version "Zone 1" |
|
|
ATEX directive 94/9/EC |
|
|
II 2 (2) G Ex d e ia ib mb [ia ib] IIC T4 Gb |
|
II 2 (2) G Ex d e ia ib mb [ia ib op is] IIC T4 Gb |
|
IECEx |
|
|
Ex d e ia ib mb [ia ib] IIC T4 Gb |
|
Ex d e ia ib mb [ia ib op is] IIC T4 Gb |
|
GOST-R |
|
|
2 Ex d e ia ib mb [iaib] IIC T4 |
|
2 Ex d e ia ib mb [iaibopis] IIC T4 |
|
CSA |
Ex d e ia ib mb [ia ib] IIC T4 Gb, Type 4X, IP66 |
|
KGS |
Ex d e ia ib mb [ia ib] IIC T4 |
|
InMetro |
|
|
Ex d e ia ib mb [ia ib] IIC T4 Gb |
|
Ex d e ia ib mb [ia ib op is] IIC T4 Gb |
|
Device version "UL Class 1, Division 2" |
Class 1, Division 2, Groups A, B, C, D |
|
Devices in version "Zone 2" |
|
|
ATEX directive 94/9/EC |
|
|
II 3 (2/3) G Ex d e ia ib mb nA [ib Gb] [ic] IIC T4 Gc |
|
II 3 (2/3) G Ex d e ia ib mb nA [ib op is Gb] [ic] IIC T4 Gc |
|
IECEx |
|
|
Ex d e ia ib mb nA [ib Gb] [ic] IIC T4 Gc |
|
Ex d e ia ib mb nA [ib op is Gb] [ic] IIC T4 Gc |
|
GOST-R |
|
|
2 Ex d e ia ib mb nA [ib][ic] IIC T4 |
|
2 Ex d e ia ib mb nA [ib opis][ic] IIC T4 |
|
CSA |
Ex d e ia ib mb nA [ib Gb] [ic] IIC T4 Gc, Type 4X, IP66 |
|
InMetro |
|
|
Ex d e ia ib mb nA [ib Gb] [ic] IIC T4 Gc |
|
Ex d e ia ib mb nA [ib op is Gb] IIC T4 |
|
Device version "UL Class 1, Division 2" |
Class 1, Division 2, Groups A, B, C, D |
|
Dimensions |
|
|
Mounting dimensions (W x H x D) |
15": 427.5 mm x 327.5 mm x 165 mm |
|
Front dimensions (W x H) |
15": 440 mm x 340 mm |
|
Weight |
15": 15 kg |
Dimensional drawings
Legend:
h = Mounting clamp (10 x)
i = Clamping frame
j = Control cabinet or enclosure
All dimensions in mm. For mounting cut-out see technical specifications.
SIMATIC HMI Panel PC Ex 15"
SIMATIC HMI Panel PC Ex 19"
